Fogging Nozzle System
Ruby Nozzle

In order to provide our customer with the highest quality nozzles. Our nozzles use the Glass to Metal Seal technology to embed the ruby as the center core of the nozzle.

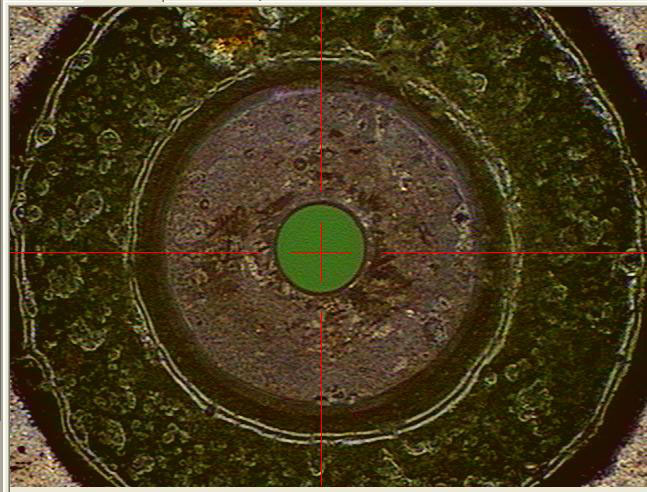

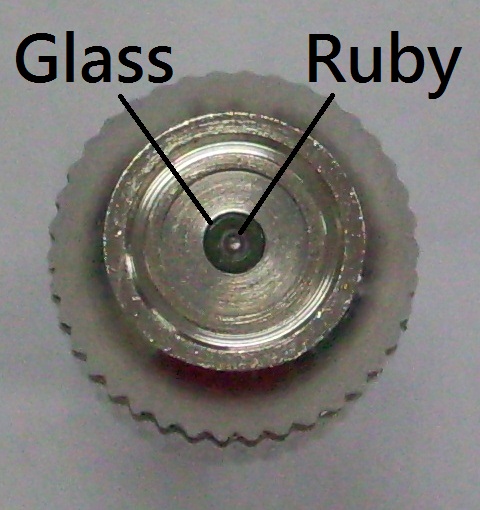

The image will give you a closer look at our nozzle head. The red color in the center is the ruby core that is tightly sealed with glass to the metal.

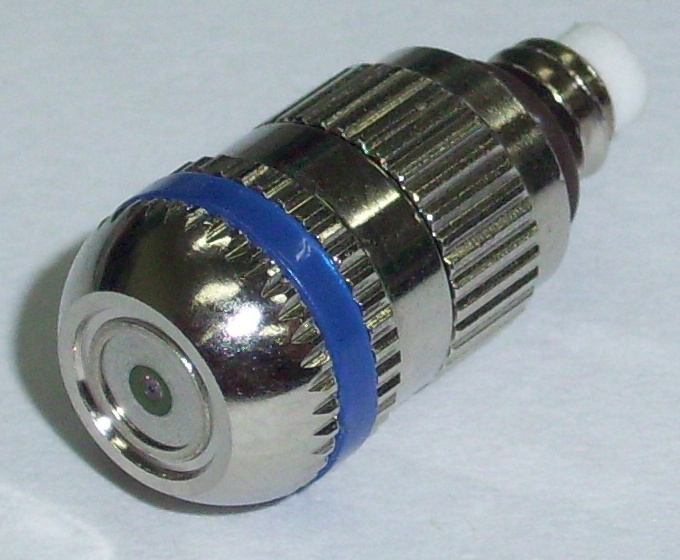

KX-55
Description

Orifice diameter : 0.15, 0.2, 0.3mm

KX55CN-N nozzle： Brass Nickel-Plated body, with NBR O-ring and anti-drop check.
KX55CN-V nozzle： Brass Nickel-Plated body, with Viton O-ring and anti-drop check.
KX55S-N nozzle： Stainless Steel body, NBR O-ring and anti-drop check.
KX55S-V nozzle： Stainless Steel body, Viton O-ring and anti-drop check.

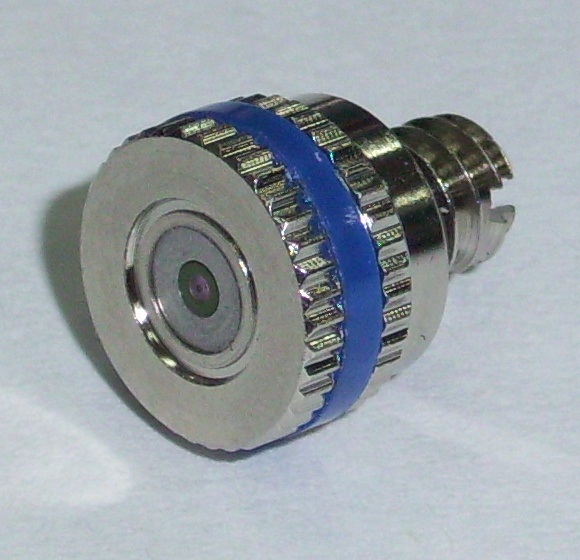

KX-57
Description

Orifice diameter : 0.15, 0.2, 0.3mm

KX57CN-N nozzle： Brass Nickel-Plated body, with NBR O-ring and anti-drop check.
KX57CN-V nozzle： Brass Nickel-Plated body, with Viton O-ring and anti-drop check.
KX57S-N nozzle： Stainless Steel body, NBR O-ring and anti-drop check.
KX57S-V nozzle： Stainless Steel body, Viton O-ring and anti-drop check.

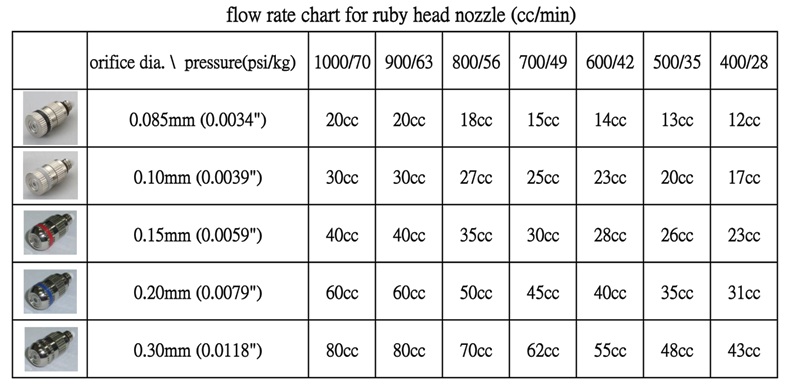

 Flow rate chart for ruby head nozzle (cc/min)
orifice dia.\   pressure(psi/kg)
 1000/70 900/63 800/56 700/49 600/42 500/35 400/28
0.15mm (0.0059")
 40cc 40cc 35cc 30cc 28cc 26cc 23cc
0.20mm (0.0078")
 60cc 60cc 50cc 45cc 40cc 35cc 31cc
0.30mm (0.0118")
 80cc 80cc 70cc 62cc 55cc 48cc 43cc
